Gate System
| Budget | ★★☆☆☆ |
| Security Level | ★★★★☆ |
| Ease of Installation | ★★★★☆ |
200 RAL Colors, Colors can be customized
Material: Low carbon steel wire
Height: 1-3m
Width: 1-2m
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Certificates: ISO9001
Product Description
Single gate — also known as single swing gate or pedestrian gate — has one leaf panel that swings open on hinges, providing pedestrian access for residential, commercial, or industrial properties. As a leading metal gate supplier, we offer this configuration as the simplest and most economical entry point into our gate system range, well suited to narrower openings where a single leaf can swing through cleanly without needing excessive clearance.
The gate panel can be supplied in several infill styles — welded mesh, chain link mesh, 358 security mesh, steel tubular, or double wire mesh — each suited to a different balance of security, visibility, and appearance. See the comparison below to find the style that matches your application.
● Security — Provides a robust barrier against unauthorized access; security level varies by panel style, with tighter mesh openings offering stronger anti-climb and anti-cut resistance.
● Customization — Size, panel style, mesh opening, and color can all be configured to match the architectural style of the property.
● Easy Installation — Installation tools and instructions are provided, and the single-leaf design keeps hardware and setup straightforward.
● Anti-Corrosion — Hot-dip galvanized and powder-coated surface treatment is designed to resist rust for many years under normal outdoor conditions.
● Durability — Built from high-quality welded steel tube and wire for long-term strength.
358 security mesh offers the tightest mesh opening of our available styles, making it the most resistant to climbing or gripping — it's the typical choice for industrial sites, airports, or other high-security applications.
Welded mesh uses a single wire welded at each intersection, offering a good balance of cost and moderate security. Double wire mesh uses a twin-wire construction that resists cutting and tampering better, making it a stronger choice where vandal resistance matters, such as schools or commercial sites.
Yes — the steel tubular panel option offers the most open, traditional appearance, with visibility prioritized over maximum security. It's a popular choice for residential properties where appearance is the main consideration.
Single gates work best for narrower openings, since the full gate width needs clear space behind it to swing open. For wider openings, a double gate is often a more practical choice — see our Double Gate page for details.
Yes. Height, width, panel style, mesh opening, post type, and color can all be configured independently to match your project's security and aesthetic requirements.
Under normal outdoor conditions, the hot-dip galvanized and powder-coated finish is designed to resist corrosion for many years. Actual lifespan depends on local climate — let us know if you're in a coastal or high-humidity region for a coating recommendation.
Yes. A downloadable drawing is available on this page, installation tools and instructions are included, and our design team can provide drawings based on your site dimensions.
Specification
The panel style you choose affects security level, visibility, and overall appearance — there's no single "best" option, only the right fit for your application.
358 security mesh has the tightest, smallest mesh opening of the available styles, making it the hardest to climb or get a foothold on. It's the preferred choice for high-security sites like industrial facilities, airports, or any application where anti-climb performance matters most.
Double wire mesh uses a twin-wire construction that resists cutting and tampering better than single-wire mesh, making it a strong choice for commercial properties, schools, or sites where vandal resistance is a priority alongside reasonable visibility.
Welded mesh and chain link mesh offer a balance of cost, visibility, and moderate security, and are commonly used for general residential or commercial access points where extreme security isn't the primary concern.
Steel tubular panel is the most open, decorative option — offering the best visibility and a more traditional or architectural look, at the cost of lower anti-climb security compared to mesh styles.
Not sure which style fits your project? Contact us with your security requirements and site use, and we can recommend the right panel style and specification.
| Gate Height | Gate Width | Gate Panel Style | Mesh opening | Post | |
| 1.2m 1.5m 1.8m 2.0m 2.5m 3.0m | 0.8m 1.0m 1.2m 1.5m 1.8m 2.0m | 3D welded mesh panel | 50*100mm 50*150mm 50*200mm | Round post 48mmOD*1-3mmT 60mmOD*1-3mmT 80mmOD*1-3mmT | Square post 60*60mm*1-3mmT 80*80mm*1-3mmT 100*100mm*1-3mmT |
| Chain link mesh panel | 50*50mm 60*60mm 80*80mm | ||||
| 358 mesh panel | 76.2*12.7mm(3"*0.5") | ||||
| Steel tubular panel | Tube size 20*20mm 30*30mm 40*40mm | ||||
| Double wire mesh panel | 50*100mm 50*150mm 50*200mm | ||||
| Accessories: Gate hinge, lock, wheel.etc | |||||
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated, galvanized+powder coated | |||||
| Hot color: RAL 6005 green, RAL9005 black. All RAL color can be customized | |||||
| Note: If you want other specification, we can also customized for you | |||||
| Panel Style | Mesh Opening / Size Options |
|---|---|
| 3D Welded Mesh Panel | 50×100mm, 50×150mm, 50×200mm |
| Chain Link Mesh Panel | 50×50mm, 60×60mm, 80×80mm |
| 358 Security Mesh Panel | 76.2×12.7mm (3"×0.5") |
| Steel Tubular Panel | Tube size: 20×20mm, 30×30mm, 40×40mm |
| Double Wire Mesh Panel | 50×100mm, 50×150mm, 50×200mm |
Note: Other specifications, dimensions, and panel designs can be customized — contact us with your project requirements.

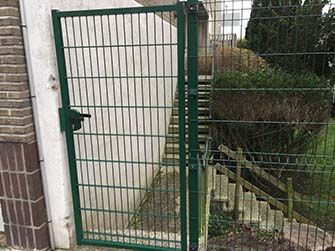

Single Gate

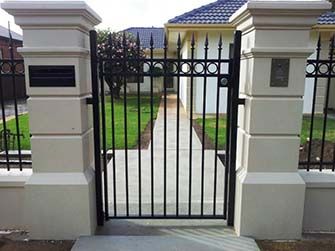

Single Gate

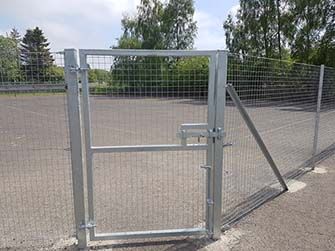

Single Gate

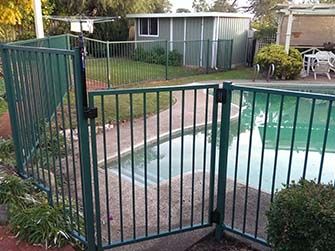

Single Gate

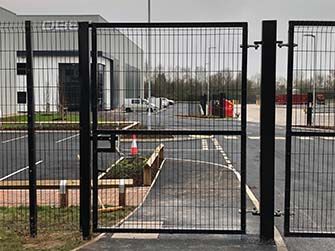

Single Gate

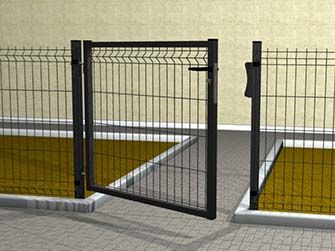

Single Gate
