Gate System
| Budget | ★★☆☆☆ |
| Security Level | ★★★★☆ |
| Ease of Installation | ★★★★☆ |
200 RAL Colors, Colors can be customized
Material: Low carbon steel wire and tube
Height: 1-3m
Width: 2-3m
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Certificates: ISO9001
Product Description
Farm gate is built for agricultural environments — farms, ranches, and rural properties — where it's used to manage livestock movement, secure property boundaries, and control access to fields and pastures. As a leading metal gate supplier, we build farm gate with a focus on what matters most in this setting: keeping livestock in and predators out, while staying simple enough to operate by hand at a field entrance.
Farm gate can be configured with one or two leaf panels and is typically operated manually. It allows people and equipment to pass through while keeping livestock contained, and is commonly used at field, pasture, and cropland access points.
The panel can be supplied as welded mesh or tube style — see the comparison below to find the right fit for the animals you're containing.
● Security — Provides a robust barrier to keep livestock from escaping through field and pasture entrances.
● Customization — Size, panel style, and color can all be configured to match your site and the animals you're managing.
● Easy Installation — Installation tools and instructions are provided, and the manual operation keeps hardware simple and low-maintenance.
● Anti-Corrosion — Hot-dip galvanized and powder-coated surface treatment is designed to resist rust for many years under normal outdoor conditions.
● Durability — Built from high-quality welded steel tube and wire for long-term strength in outdoor agricultural use.
The right panel style depends mainly on what you're keeping in or out. Tube panel uses horizontal tubes spaced across the gate frame, making it lighter and more economical — a practical choice for cattle, horses, or other large livestock that aren't likely to push through the gaps between tubes. Welded mesh panel has much tighter spacing, which matters if you're containing sheep, goats, or other smaller animals that could otherwise slip through a tube gate's wider gaps, or if predator exclusion is a concern.
If your gate needs to serve a mixed herd — for example, cattle alongside sheep or goats — mesh panel is generally the safer choice, since tube spacing that's fine for cattle may not be tight enough for smaller animals.
One of the most common issues with farm gates isn't the gate itself — it's the gap that forms underneath when the gate is installed on uneven or sloped ground. A gap that's too wide lets smaller livestock slip under, or gives predators an opening. If your site has a slope or uneven ground at the gate location, let us know when ordering — hinge placement and gate height can be adjusted to help minimize this gap, and we can advise on ground-level solutions for your specific site.
Tube panel is lighter and more economical, and works well for cattle, horses, or other large livestock unlikely to push through the gaps between tubes. Welded mesh panel has tighter spacing, making it the safer choice for sheep, goats, smaller animals, or mixed herds where predator exclusion also matters.
Uneven ground is the most common cause of gaps forming under a farm gate, which can let small livestock slip out or predators in. Let us know your site conditions when ordering — hinge placement and height can be adjusted to help minimize this gap.
Standard farm gate is designed for manual operation, which keeps hardware simple and reliable in agricultural settings. If you need automated or remote-operated access for a farm entrance, let us know and we can discuss options based on your site and usage frequency.
Yes. Height, width, panel style, post type, and color can all be configured independently to match your livestock type and site requirements.
Under normal outdoor conditions, the hot-dip galvanized and powder-coated finish is designed to resist corrosion for many years. Actual lifespan depends on local climate — let us know if you're in a coastal or high-humidity region for a coating recommendation.
Yes. A downloadable drawing is available on this page, installation tools and instructions are included, and our design team can provide drawings based on your site dimensions and terrain.
Specification
| Gate Height | Gate Width | Gate Panel Style | Mesh opening | Post | |
| 1.0m 1.2m 1.5m 1.8m 2.0m | 1.2m 1.5m 1.8m 2.0m 3.0m 4.0m 5.0m | welded mesh panel | 50*100mm 50*150mm 50*200mm | Round post 48mmOD*1-3mmT 60mmOD*1-3mmT 80mmOD*1-3mmT | Square post 60*60mm*1-3mmT 80*80mm*1-3mmT 100*100mm*1-3mmT |
| Tube panel | Tube size 32mmOD 38mmOD 42mmOD 48mmOD | ||||
| Accessories: Gate hinge, link, wheel .etc | |||||
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated, galvanized+powder coated | |||||
| Hot color: RAL 6005 green, RAL9005 black. All RAL color can be customized | |||||
| Note: If you want other specification, we can also customized for you | |||||

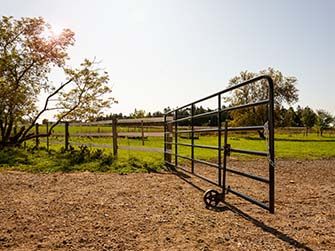

Farm gate

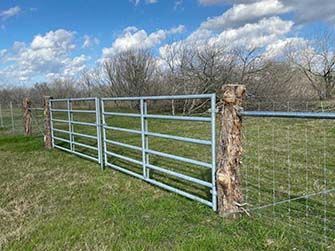

Farm gate

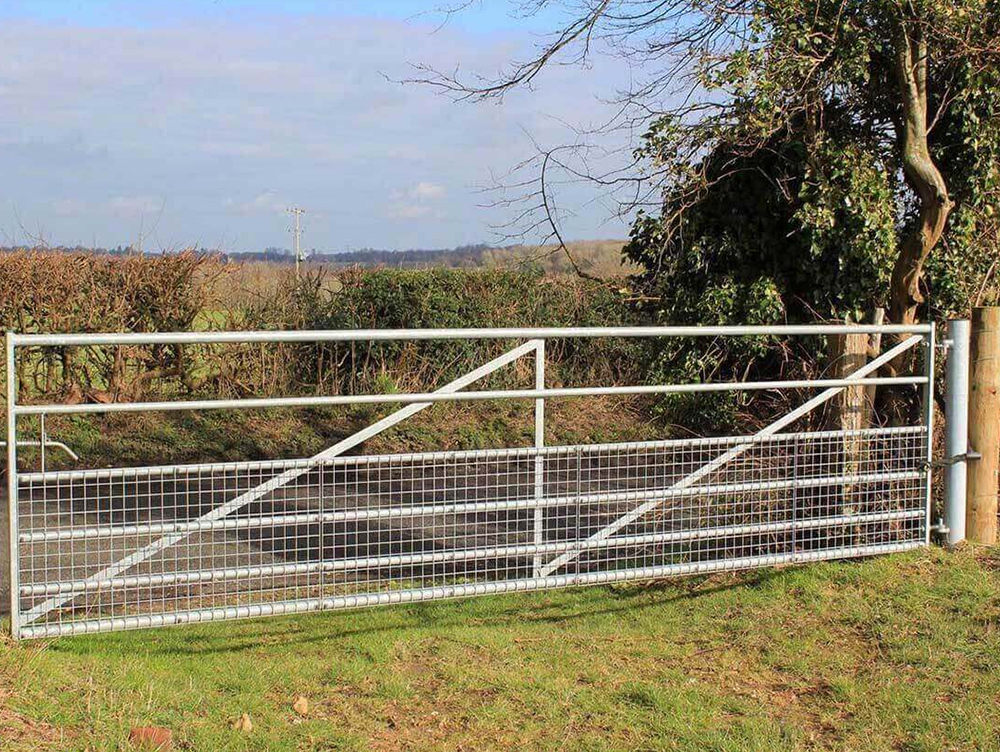

Farm gate

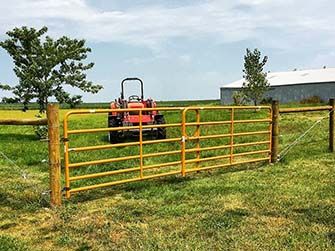

Farm gate

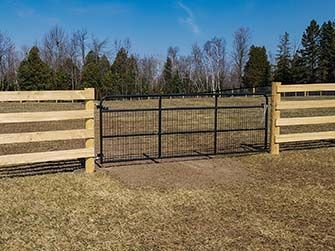

Farm gate

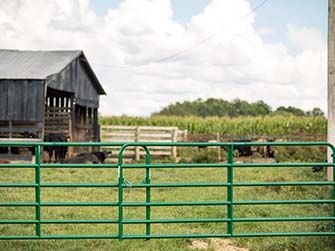

Farm gate
Download
