Gate System
| Budget | ★★★☆☆ |
| Security Level | ★★★★☆ |
| Ease of Installation | ★★★★☆ |
200 RAL Colors, Colors can be customized
Material: Low carbon steel wire
Height: 1-3m
Width: 2-5m
Surface treatment: Hot dipped galvanized, PVC coated, Powder coated
Certificates: ISO9001
Product Description

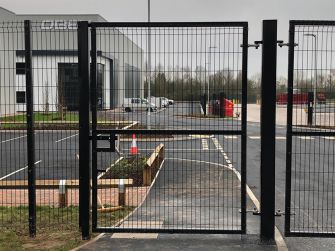

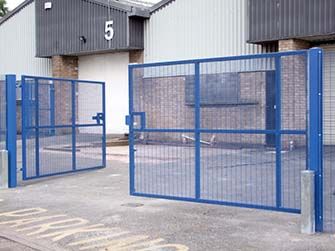

Double gate — also known as double swing gate or vehicle gate — has two leaf panels that swing open from the center on hinges, allowing both pedestrian and vehicle access. As a leading metal gate supplier, we build double gate as the wider-opening counterpart to our single gate line: by splitting the total width across two leaves, it covers driveway and vehicle entrances that a single-leaf gate can't span efficiently, while needing less swing clearance per leaf than an equivalent-width single gate.
The gate panel can be supplied in several infill styles — welded mesh, chain link mesh, 358 security mesh, steel tubular, or double wire mesh — each suited to a different balance of security, visibility, and appearance. See the comparison below to find the style that matches your application.
● Security — Provides a robust barrier against unauthorized access; security level varies by panel style, with tighter mesh openings offering stronger anti-climb and anti-cut resistance.
● Customization — Size, panel style, mesh opening, and color can all be configured to match the architectural style of the property.
● Easy Installation — Installation tools and instructions are provided; splitting the opening across two leaves also keeps individual panel weight more manageable during installation than a single very wide leaf.
● Anti-Corrosion — Hot-dip galvanized and powder-coated surface treatment is designed to resist rust for many years under normal outdoor conditions.
● Durability — Built from high-quality welded steel tube and wire for long-term strength.
The deciding factor between single and double gate is usually opening width and available swing clearance. A single gate needs clear depth equal to its full leaf width to swing open, which becomes impractical for wide vehicle entrances — a 4m single leaf needs 4m of clear space behind it. A double gate splits that same 4m opening into two 2m leaves, each needing only about half the swing clearance, which makes it the more practical choice for driveways and vehicle access points, especially on sites where space behind the gate is limited.
Double gate is also the better choice whenever vehicle access is required, since single gates are generally sized for pedestrian openings rather than vehicle widths.
The panel style you choose affects security level, visibility, and overall appearance.

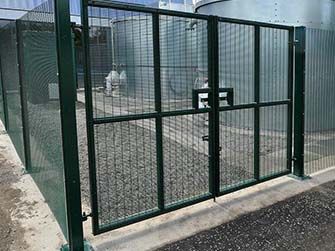

358 security mesh has the tightest, smallest mesh opening of the available styles, making it the hardest to climb or get a foothold on — the preferred choice for high-security sites like industrial facilities or any application where anti-climb performance matters most.
Double wire mesh uses a twin-wire construction that resists cutting and tampering better than single-wire mesh, making it a strong choice for commercial properties or sites where vandal resistance is a priority alongside reasonable visibility.

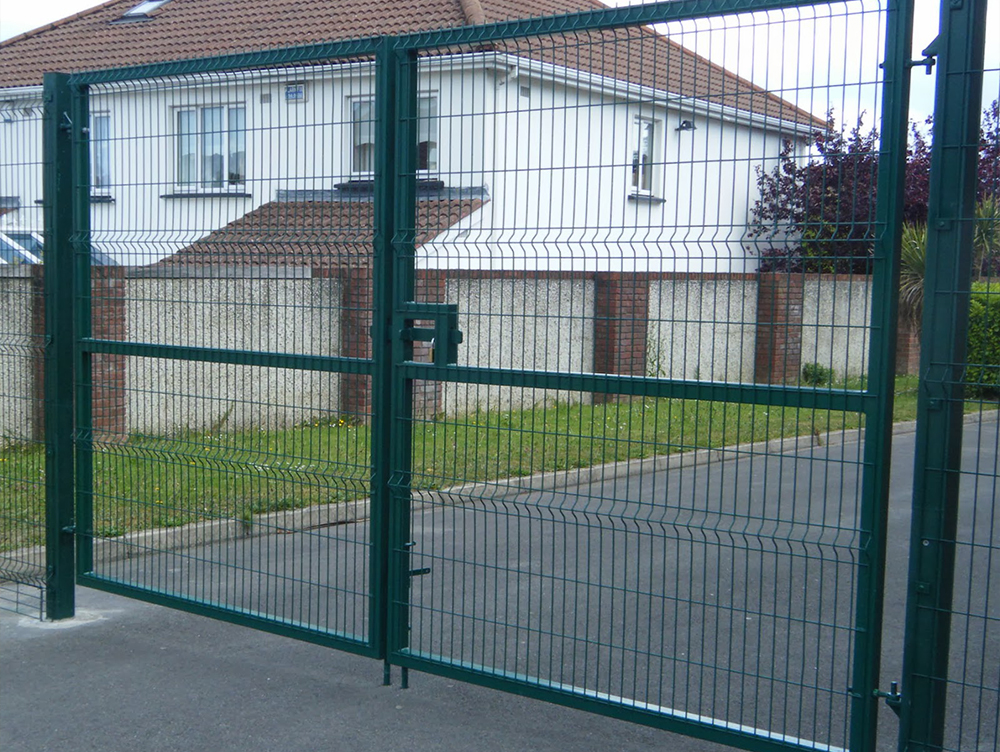

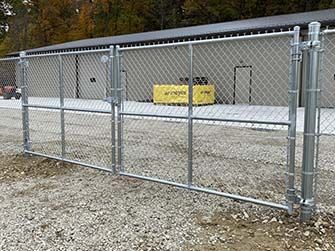

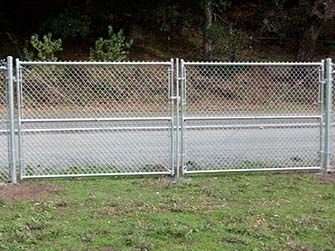

Welded mesh and chain link mesh offer a balance of cost, visibility, and moderate security, commonly used for general residential or commercial vehicle entrances.

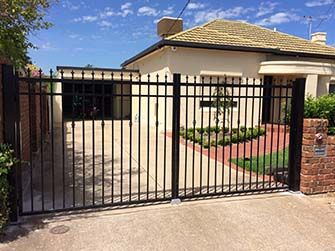

Steel tubular panel is the most open, decorative option — offering the best visibility and a more traditional or architectural look, at the cost of lower anti-climb security compared to mesh styles.
Not sure which style fits your project? Contact us with your security requirements and site use, and we can recommend the right panel style and specification.
Double gate has two leaves that swing open from the center, while single gate has one leaf. Double gate is the better choice for wider openings or vehicle access, since splitting the width across two leaves reduces the swing clearance needed per leaf compared to a single very wide leaf.
Each leaf needs swing clearance roughly equal to its own width — for a 4m total opening split into two 2m leaves, you'd need about 2m of clear space on each side for the leaves to swing fully open.
358 security mesh offers the tightest mesh opening of our available styles, making it the most resistant to climbing or gripping — it's the typical choice for industrial sites or other high-security applications.
Yes. Double gate can be fitted with hinge-mounted arm operators or underground actuators for automatic operation, controlled via remote control or integrated with other access control systems.
Yes. Height, total width, panel style, mesh opening, post type, and color can all be configured independently to match your project's security and aesthetic requirements.
Under normal outdoor conditions, the hot-dip galvanized and powder-coated finish is designed to resist corrosion for many years. Actual lifespan depends on local climate — let us know if you're in a coastal or high-humidity region for a coating recommendation.
Yes. A downloadable drawing is available on this page, installation tools and instructions are included, and our design team can provide drawings based on your site dimensions.
Specification
| Gate Height | Gate Width | Gate Panel Style | Mesh opening | Post | |
| 1.2m 1.5m 1.8m 2.0m 2.5m 3.0m | 1.2m 1.5m 1.8m 2.0m 3.0m 4.0m 5.0m | 3D welded mesh panel | 50*100mm 50*150mm 50*200mm | Round post 48mmOD*1-3mmT 60mmOD*1-3mmT 80mmOD*1-3mmT | Square post 60*60mm*1-3mmT 80*80mm*1-3mmT 100*100mm*1-3mmT |
| Chain link mesh panel | 50*50mm 60*60mm 80*80mm | ||||
| 358 mesh panel | 76.2*12.7mm(3"*0.5") | ||||
| Steel tubular panel | Tube size 20*20mm 30*30mm 40*40mm | ||||
| Double wire mesh panel | 50*100mm 50*150mm 50*200mm | ||||
| Accessories: Gate hinge, lock, wheel.etc | |||||
| Surface treatment: Hot dipped galvanized, galvanized +PVC coated, galvanized+powder coated | |||||
| Hot color: RAL 6005 green, RAL9005 black. All RAL color can be customized | |||||
| Note: If you want other specification, we can also customized for you | |||||
| Panel Style | Mesh Opening / Size Options |
|---|---|
| 3D Welded Mesh Panel | 50×100mm, 50×150mm, 50×200mm |
| Chain Link Mesh Panel | 50×50mm, 60×60mm, 80×80mm |
| 358 Security Mesh Panel | 76.2×12.7mm (3"×0.5") |
| Steel Tubular Panel | Tube size: 20×20mm, 30×30mm, 40×40mm |
| Double Wire Mesh Panel | 50×100mm, 50×150mm, 50×200mm |
Note: Gate width above refers to the total opening across both leaves combined. Other specifications and panel designs can be customized — contact us with your project requirements.
Double gate
Double gate
Double gate
Double gate
Double gate
Double gate
Download
Related Products

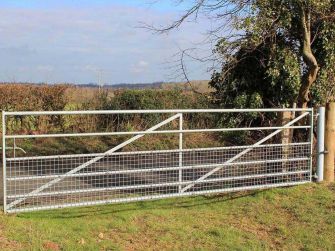

Farm gate usually used in agricultural environments such as farms, ranches, and rural properties. These gates are very important for managing livestock, protecting property boundaries, and controlling access to fields and pastures.
